When designing or upgrading an industrial dust collection system, choosing between a bag filter system and a cartridge filter system is always a challenging puzzle for investors and engineers alike. Choosing the wrong filtration technology not only reduces dust collection efficiency but also leads to wasted initial investment and high long-term operation and maintenance costs.
To help businesses gain a comprehensive overview and make the most accurate investment decision, Vimax Global provides an in-depth analysis through the 11 “golden” technical criteria comparison table below.

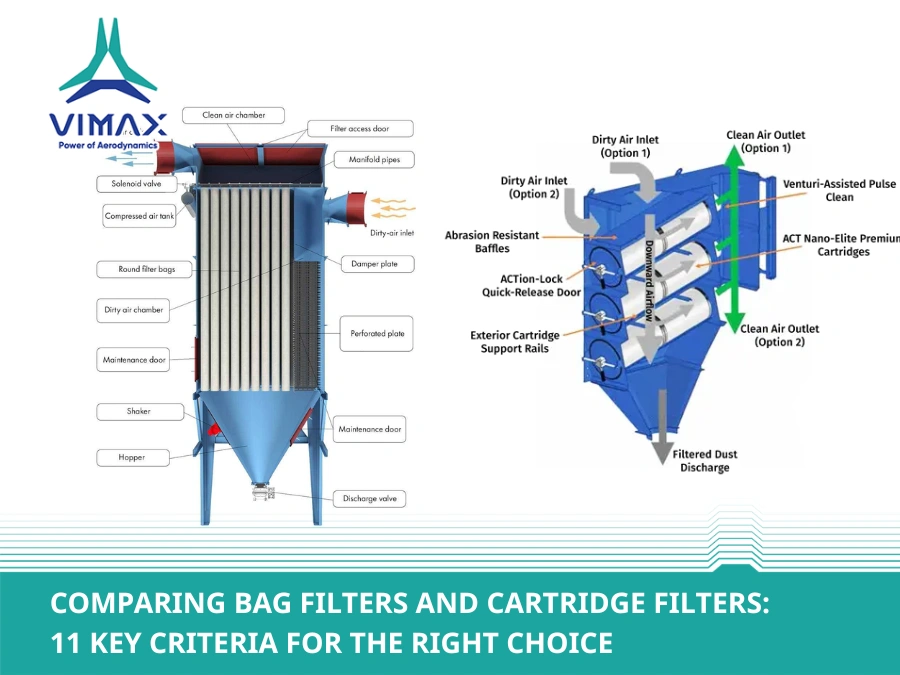

Overview of Bag Filter and Cartridge Filter Technologies
To clearly understand the differences, we first need to grasp the basic definition and structure of these two technologies:

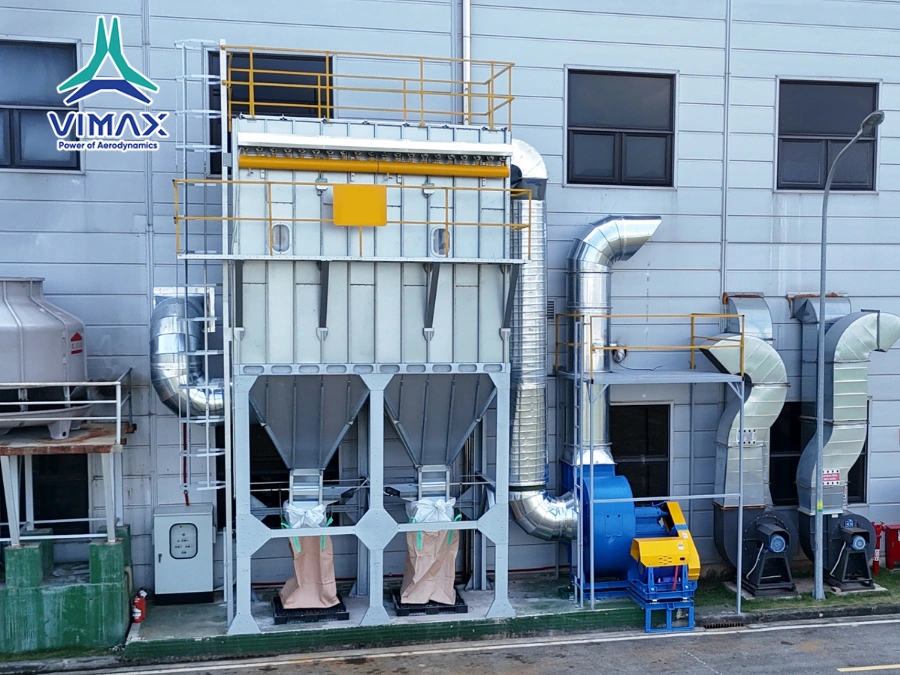

What is a Bag Filter? This dust collection technology uses long cylindrical or oval filter bags. These bags are typically made of non-woven fabric or polyester fibers to trap dust particles as the gas stream passes through.

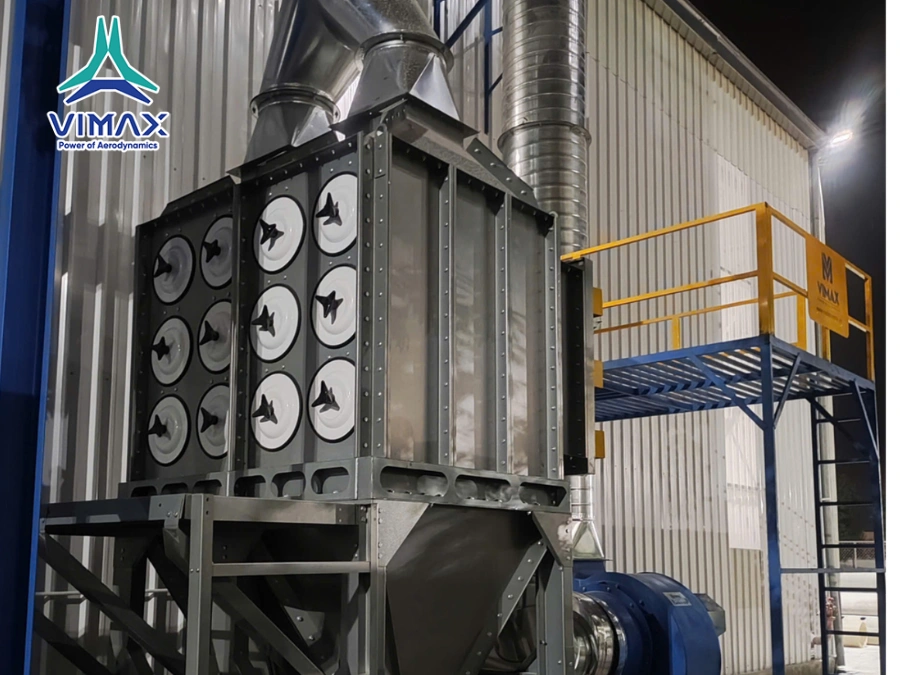

What is a Cartridge Filter? This technology utilizes shorter, cylindrical filter cartridges (cores). The defining feature of a cartridge membrane is its smart pleated (folded) design made from materials like pleated paper, polyester, or cellulose to maximize the filtration surface area.
Technical Comparison Table: Bag Filters vs. Cartridge Filters
Below is a detailed comparison table to help you easily evaluate the advantages and disadvantages of each system:
| No. | Comparison Criteria | Bag Filter | Cartridge Filter |
| 1 | Material Structure | Long cylindrical or oval bags made of non-woven fabric or polyester. | Shorter cylindrical filter tubes, typically made of pleated paper, polyester, or cellulose. |
| 2 | Filtration Surface Area | Depends on bag length; usually smaller than a cartridge within the same physical footprint. | Outstandingly large filtration area thanks to the smart pleated design. |
| 3 | Filtration Efficiency | Highly effective for medium to large dust particles (>2 – 3microns). | Higher efficiency, effectively handling fine and ultra-fine dust particles (<1micron). |
| 4 | Applications | Heavy industries: cement, steel, wood, incinerators, and mining. | Light to medium industries: pharmaceuticals, food processing, paint, chemicals, and electronics. |
| 5 | System Footprint | Occupies a large space; requires significant installation area due to long filter bags. | Compact and space-saving, making it ideal for tight or small workshop spaces. |
| 6 | Cleaning/Regeneration Mechanism | Harder to clean; typically uses pulse-jet air or mechanical shaking methods. | Easier to clean; the pleated design allows dust to easily fall off when pulsed with compressed air. |
| 7 | Filter Lifespan | Longer lifespan (from 6 months to 2 years depending on actual operating conditions). | Shorter lifespan in heavy dust environments, but very easy to replace. |
| 8 | Initial Investment Cost | Generally has a lower initial investment cost compared to cartridge systems. | Higher initial cost due to advanced pleating technology and high-grade filter media. |
| 9 | Operation & Maintenance Cost | Higher due to difficult disassembly and a multi-step replacement process. | Lower thanks to easy-to-replace designs, quick swap-outs, and stable long-term performance. |
| 10 | Air-to-Cloth Ratio | Lower (2 – 4 ft/min). | Higher (4 – 6ft/min or more). |
| 11 | Flexibility & Expandability | Difficult to upgrade or expand capacity within limited spaces. | Easy to upgrade and dynamically adjust configurations using independent modules. |
In-Depth Analysis: When Should a Business Choose Which?
Operational reality shows that no single system is universally superior; the choice depends heavily on the specific production demands of each factory.
When is a Bag Filter the Optimal Choice?
A bag filter system delivers maximum performance and the highest economic efficiency under the following conditions:
- Heavy Industries: Factories operating in sectors such as cement manufacturing, metallurgy, large-scale woodworking, or boiler operations.
- Specific Dust Characteristics: Extremely high dust concentration in the exhaust gas with coarse dust particles. The business requires continuous, long-term operation without wanting frequent downtime for filter replacement.
- Ample Installation Space: Spacious factory premises with high ceilings and no physical constraints on equipment installation.
Read more: 6 Questions Businesses Must Prepare Before Requesting a Dust & Air Filtration System Quotation
When Does a Cartridge Filter Hold an Absolute Advantage?
A cartridge collector is the perfect key to solving emissions control challenges when:
- Ultra-Clean Standards: The system must capture ultra-fine dust, laser/plasma cutting fumes, chemical dust, or pharmaceutical particles under $1\mu\text{m}$ in size.
- Limited Installation Space: Small, narrow workshops with low ceilings (in this case, horizontally mounted cartridge collectors are highly recommended to save height).
- Material Recovery Needs: The business needs to easily and cleanly recover valuable dry materials after filtration (such as powder coatings) without loss.

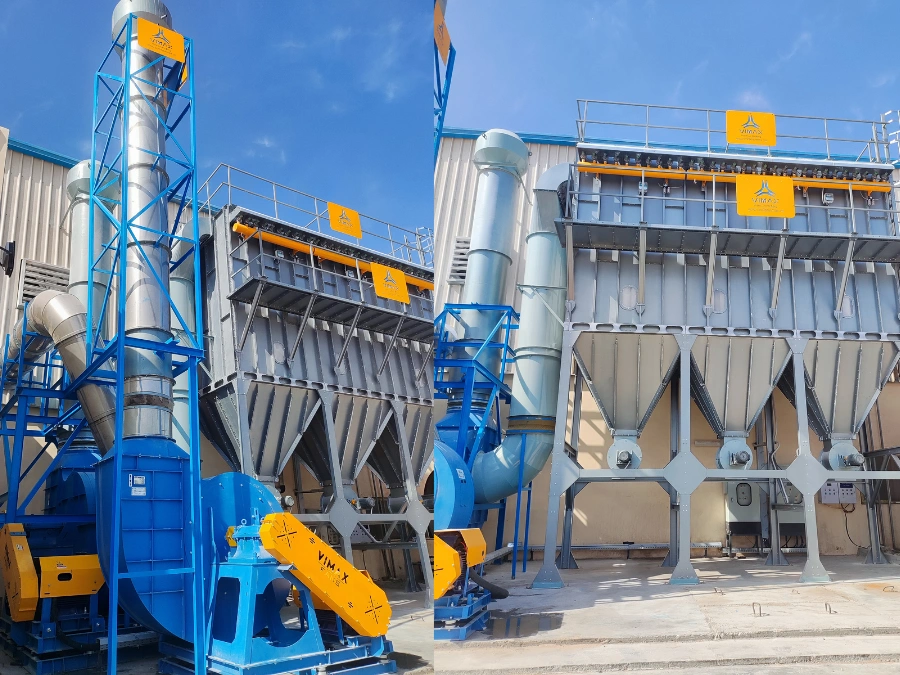

Vimax Global – Leading Engineering Partner for Dust Collection Systems in Vietnam
If your business is looking for a reputable partner to bring optimal factory emission control solutions to life, Vimax Global is your answer.
As a pioneer specializing in industrial fan manufacturing, as well as the direct design and installation of baghouses and cartridge dust collectors, Vimax Global is committed to delivering products engineered for optimal aerodynamics. We are ready to support your business comprehensively, from on-site technical surveys and space-optimized layout designs to highly realistic and competitive project quotes.
There is no “single best” dust filtration technology; there is only the technology that is most suitable for your specific dust type, airflow requirements, and investment budget.
